From the loaded dataset(weather.arff), observe the attribute names, attribute types, number of records in the dataset, Identify the class attribute (if any), and visualize the data in various dimensions.
Description:
We need to load a dataset (weather.arff) from the available data sets and observe the attribute names, attribute types, number of records in the dataset, Identify the class attribute (if any), and visualize the data in various dimensions..
To load a dataset (weather.arff) :
Procedure:
Steps:
1) Open the Weka GUI Chooser
2) In that Weka GUI chooser there are five applications, click on Explorer.
3) Explorer shows many options. In that click on 'open file...' button.
4) Choose WEKA folder in C drive.
5) Select and click on the data folder.
6) Select a dataset (weather. arff) from list of available datasets and Click on the Open button.
7) The Weka Explorer exhibits a window as displayed below.
Observe the following things:

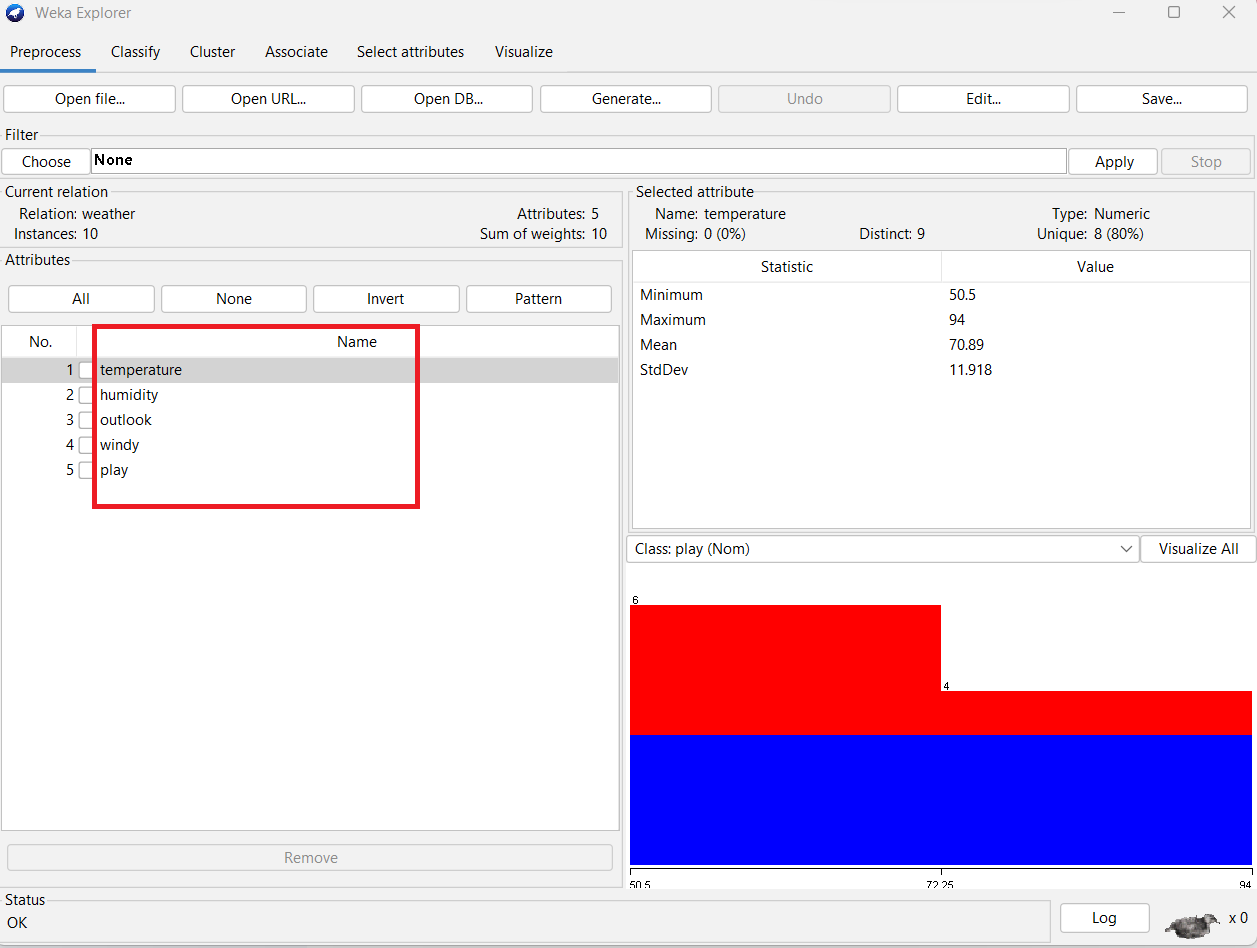

(i) Attribute names
The following are the attribute names:
- temperature
- humidity
- outlook
- windy
- play

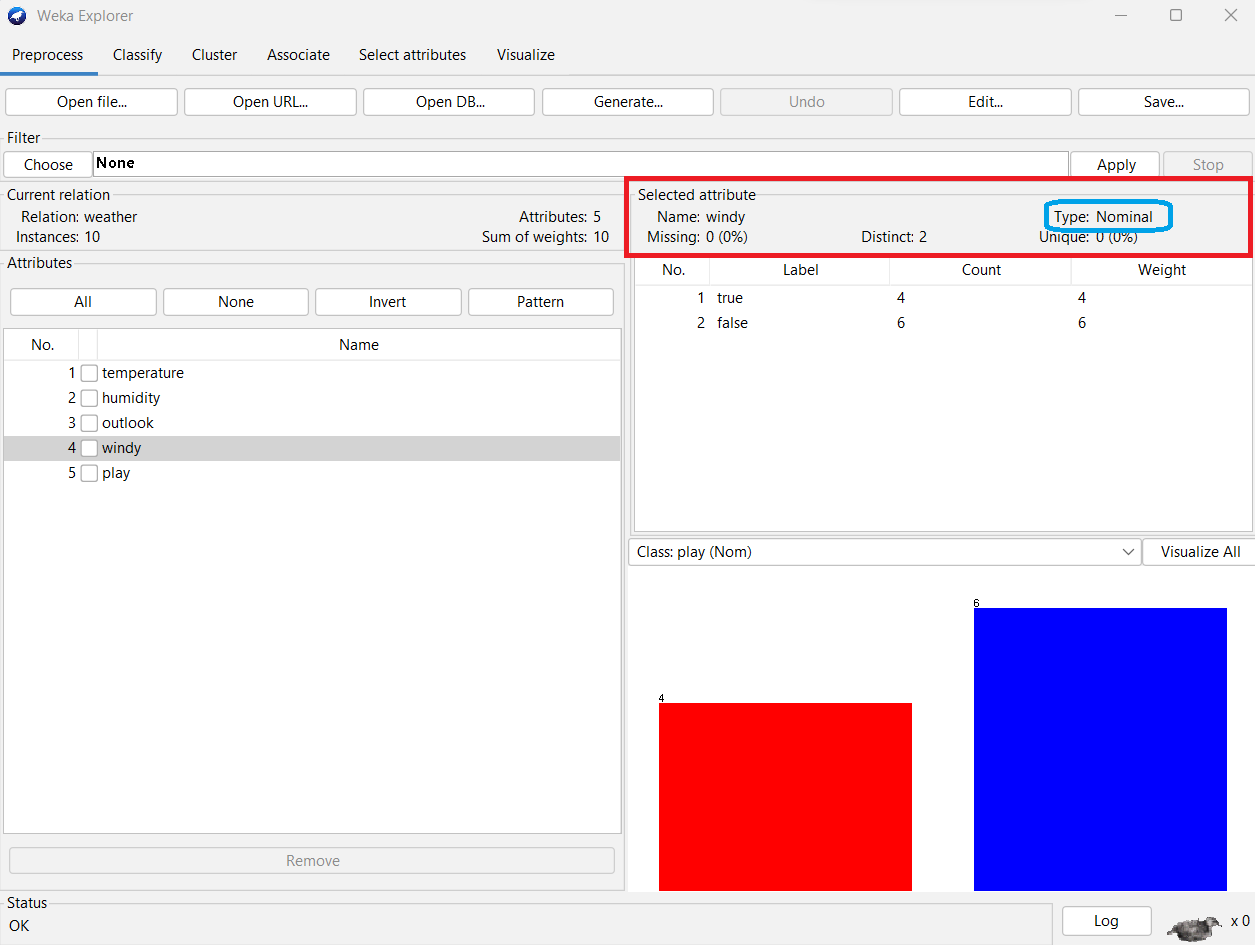

(ii) Attribute Types
The following is the list of attribute names along with their types.
| Attribute | Type |
| temperature | Numeric |
| humidity | Numeric |
| outlook | Nominal |
| windy | Nominal |
| play | Nominal |
In the above, the attributes temperature and humidity have datatype as Numeric. And the outlook, windy, and play attributes have datatype as Nominal.

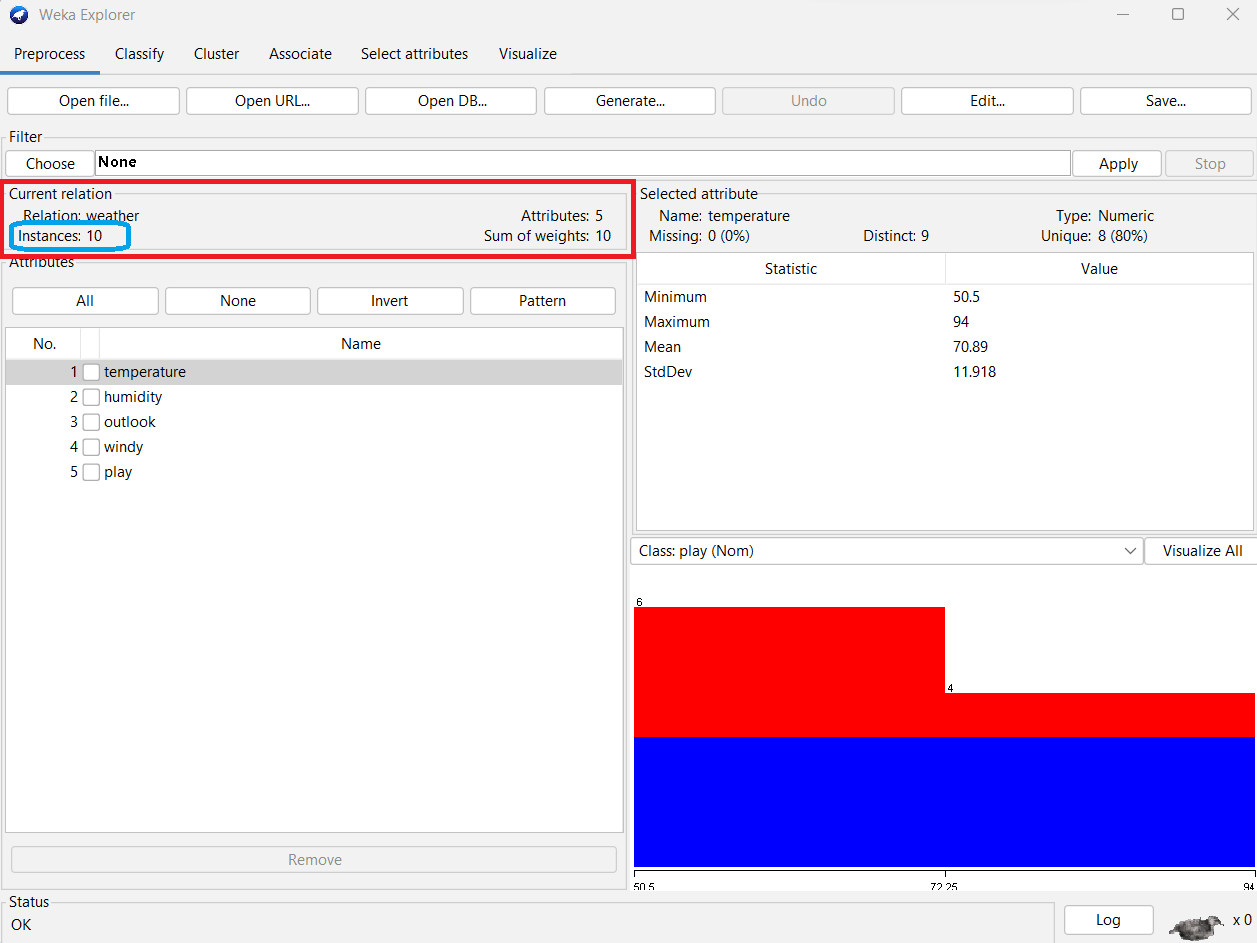

(iii) Number of records in the dataset
The number of instances/records in the dataset: 10
(iv) Identify the class attribute (if any)
In the dataset, there is a class attribute that is play. It has two classes those are yes and no.
Result:

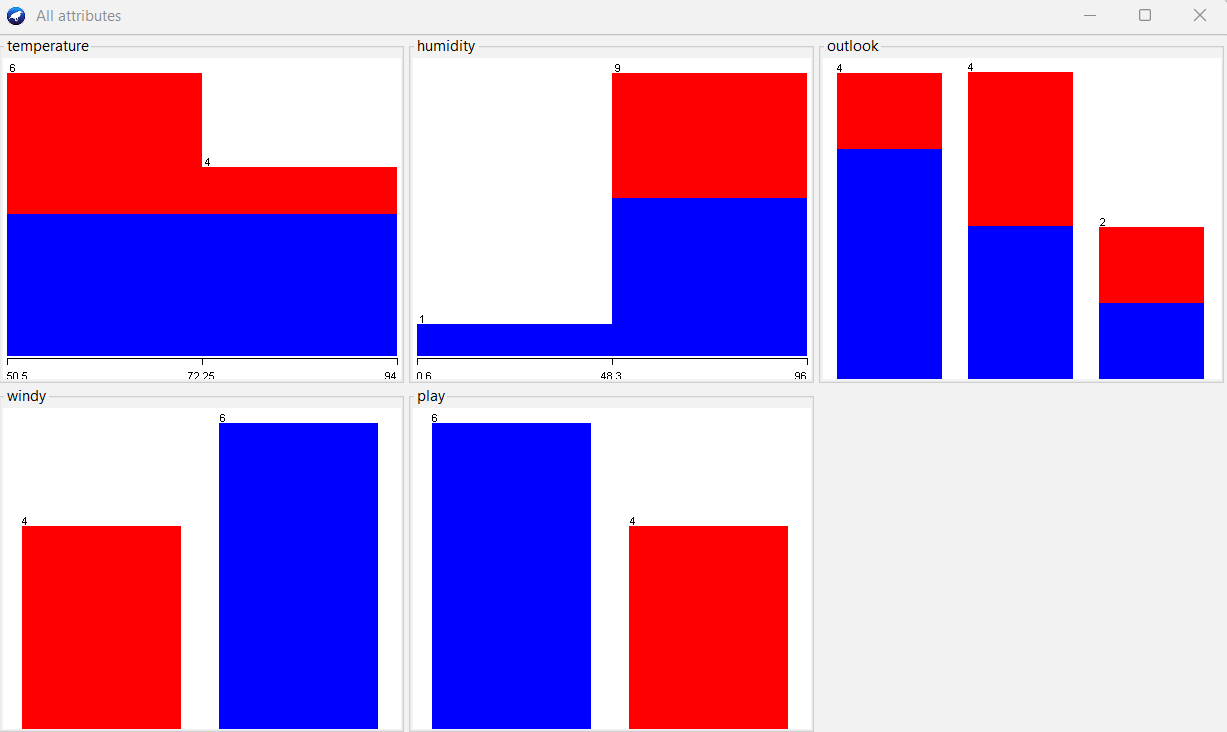

The attribute names, attribute types, number of records in the dataset, the class attribute are observed. And visualize the data in the all attributes.
