B.TECH IV YEAR โ€ข I SEMESTER โ€ข R22

Predictive Analytics - Lab Manual

Predictive Analytics Laboratory โ€ข Program Solution

๐Ÿ“˜ R22 Regulation ๐ŸŽ“ IV Year ๐Ÿ“š I Semester ๐Ÿ“Š Predictive Analytics ๐Ÿงช Lab Program
Selected Program

Hierarchical Clustering

โ† All Predictive Analytics Programs

Solution :


Library Installation:

To install required library files, Open Command Prompt or Terminal and execute the following commands


$ pip install scipy

$ pip install numpy

$ pip install matplotlib


PROGRAM: (HRC.py)


import numpy as np
import matplotlib.pyplot as plt
from scipy.cluster.hierarchy import linkage, dendrogram, fcluster

# Sample dataset
data = np.array([
    [0.374540, 0.950714],
    [0.731994, 0.598658],
    [0.156019, 0.155995],
    [0.058084, 0.866176],
    [0.601115, 0.708073],
    [0.020584, 0.969910],
    [0.832443, 0.212340],
    [0.181825, 0.183406],
    [0.304242, 0.524757],
    [0.431945, 0.291229]
])

# Perform Hierarchical Clustering
linked = linkage(data, method='ward')

# Form 3 clusters
clusters = fcluster(linked, t=3, criterion='maxclust')

# Print cluster assignments
print("Data Point\tFeature1\tFeature2\tCluster")
for i, point in enumerate(data):
    print(f"{i+1}\t\t{point[0]:.6f}\t{point[1]:.6f}\t{clusters[i]}")

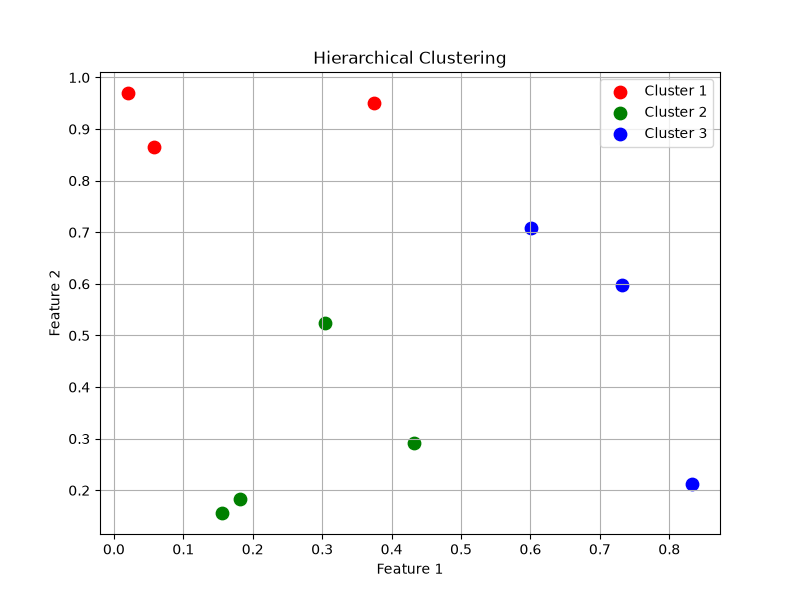

# Scatter Plot
plt.figure(figsize=(8, 6))

colors = ['red', 'green', 'blue']

for i in range(1, 4):
    plt.scatter(
        data[clusters == i, 0],
        data[clusters == i, 1],
        color=colors[i-1],
        label=f'Cluster {i}',
        s=80
    )

plt.title("Hierarchical Clustering")
plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.legend()
plt.grid(True)
plt.show()

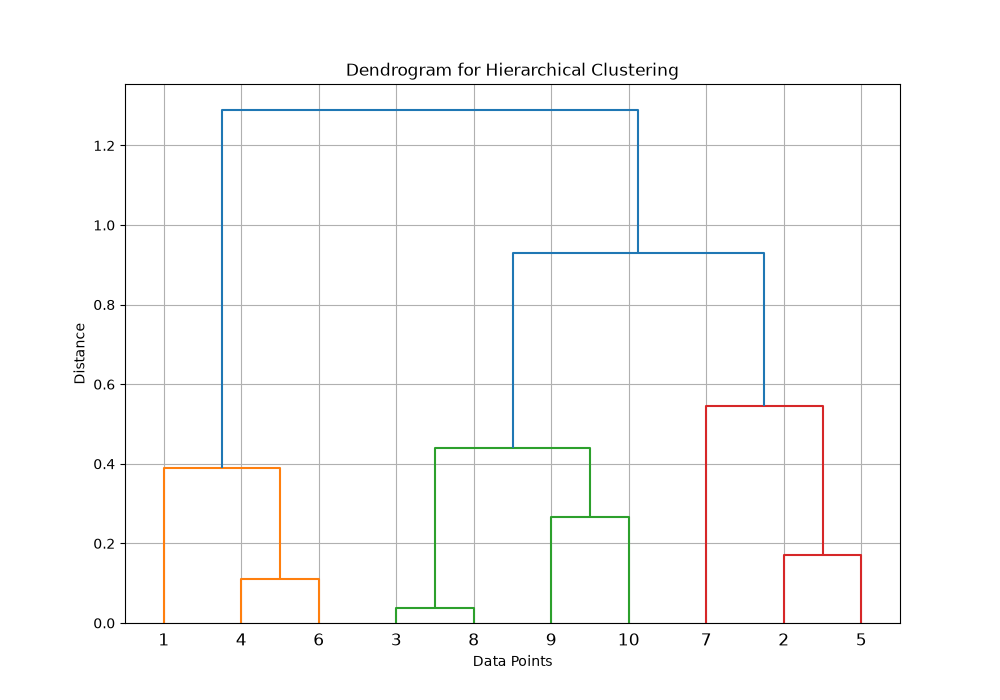

# Dendrogram
plt.figure(figsize=(10, 7))
dendrogram(
    linked,
    labels=np.arange(1, len(data) + 1)
)
plt.title("Dendrogram for Hierarchical Clustering")
plt.xlabel("Data Points")
plt.ylabel("Distance")
plt.grid(True)
plt.show()


OUTPUT:


Data Point      Feature1        Feature2        Cluster
1               0.374540        0.950714        1
2               0.731994        0.598658        3
3               0.156019        0.155995        2
4               0.058084        0.866176        1
5               0.601115        0.708073        3
6               0.020584        0.969910        1
7               0.832443        0.212340        3
8               0.181825        0.183406        2
9               0.304242        0.524757        2
10              0.431945        0.291229        2





๐Ÿ’ป Run This Python Program

Hierarchical Clustering
The selected Python program is loaded automatically into the editor. Edit the program, provide input through STDIN if required and click Run.

The compiler is embedded using OneCompiler. Your Python program runs inside the embedded Python environment; Study Glance does not execute Python code directly on your web server. If the program asks for input, type the value in the STDIN box before clicking Run. These programs use libraries such as NumPy, Pandas, Matplotlib, scikit-learn, SciPy and statsmodels, and graph windows (plt.show()) cannot be displayed here. The data files shown in the lesson (CSV) are loaded into the editor automatically. If a library is not available in the embedded compiler, use Copy Program and run the program on your computer (after pip install of the libraries) or in Google Colab.
